APC GYFJH 7.0mm With Protective Conduit

Ask Lasest Price
Brand Name :	Unifiber or OEM
Model Number :	FTTA Cpri patch cord
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1000pcs/day
Delivery Time :	3~5 days

Add to Cart

Product Details
Company Profile

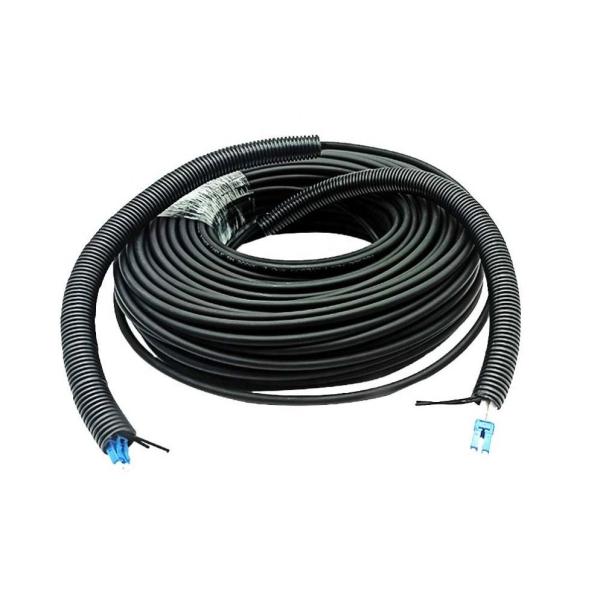

FTTA CPRI FO Patch Cord Duplex LC/UPC to SC/APC GYFJH 7.0mm With Protective Conduit

This FTTA CPRI FO Patch Cord use GYFJH 7.0mm cable, terminated with duplex LC/UPC or SC/APC on both ends, It has armored outdoor Protected Branch Cable, this can be made with any customized length from 10m~ 300m, it widely used for current 5G FTTA Solutions.

Features:
Good mechanical and environmental characteristics;
Flame retardant characteristics meet the requirements of relevant standards;
The mechanical characteristics of jacket meet the requirements of relevant standards;
Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
Meet various requirements of market and clients

Application

Mainly used in wireless base station horizontal and vertical cabling

Specification

Fiber Count	Cable Dimension mm	Cable Weight kg/km	Tensile N		Crush N/100mm		Min. Bend Radius mm		Range of Temperature
Fiber Count	Cable Dimension mm	Cable Weight kg/km	Long Term	Short Term	Long Term	Short Term	Dynamic	Static
2	7.0	42.3	200	400	1100	2200	20D	10D	-30-+70
2	5.0	24	150	300	1000	2200	20D	10D	-30-+70
Note: 1. All the values in the table, which are for reference only, are subject to change without notice; 2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable;

No.	Huawei BOM	Type and Spec	Length (L)
1	14130930	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-2m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	2m
2	14130931	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-5m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	5m
3	14130932	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-8m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	8m
4	14130641	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-10m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	10m
5	14131642	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-15m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	15m
6	14130642	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-20m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	20m
7	14131644	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-25m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	25m
8	14130643	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-30m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	30m
9	14131624	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-35m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	35m
10	14130644	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-40m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	40m
11	14131625	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-45m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	45m
12	14130645	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-50m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	50m
13	14131626	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-55m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	55m
14	14130646	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-60m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	60m
15	14131627	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-65m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	65m
16	14130647	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-70m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	70m
17	14132648	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-75m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	75m
18	14132649	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-80m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	80m
19	14132650	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-85m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	85m
20	14132651	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-90m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	90m
21	14132652	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-95m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	95m
22	14130648	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-100m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	100m
23	14130649	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-120m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	120m
24	14130650	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-150m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	150m
25	14130645-001	Optical cable assembly, DLC/UPC-DLC/UPC-SM-GYFJH-2G.657A2-200m-7.0mm-2C-0.03m/0.34m-2mm-LSZH-Outdoor	200m

FTTA CPRI FO Patch Cord Duplex LC/UPC to SC/APC GYFJH 7.0mm With Protective Conduit
