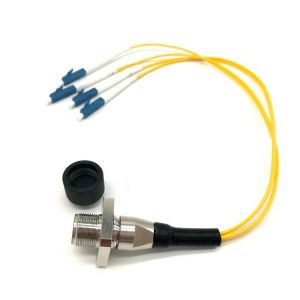

ODC Socket to LC/SC/ST/FC 4 Fiber Outdoor Patch Cable Connector

Applications

ODC connector is next generation connectors for wireless base station application (WCDMA/TD-SCDMA/CDMA200/Wi-MAX/GSM) that can meet the requirements of FTTA (fiber to the top of the tower). our ODC connector's interface can be compatible with the mainstream of the current global supplier of ODC connector.

Features

• 2/4 fibers,singlemode or multimode
• Compact design with 2×1.25mm ferrules
• Built-in socket with square or hexagonal flange
• Extension connector for cable chaining
• Screwed locking mechanism
• Easy and safe intallation
• Water proof,dust proof and corrosion resistant
• Water proof protection caps
• EMI protected
• RoHs compliant
• Fulfills performance standard IEC 61753-1 Cat.E
• Cable Length: 1M
• Connector: ODC socket to LC/SC/ST/FC

Specifications

Optical Performance
