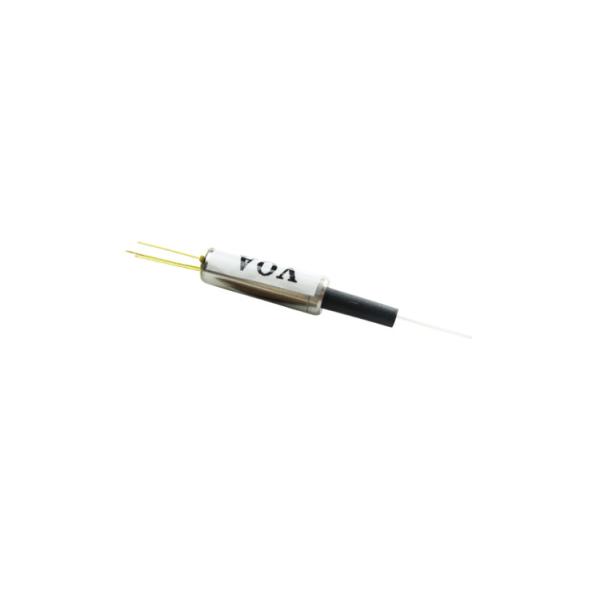

C Band 1530~1565 MEMS Variable Optical Attenuator EDFA For DWDM Channel

Product Categories

Shenzhen Unifiber Technology Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Ask Lasest Price
Brand Name :	UNIFIBER-OEM
Model Number :	MEMS Variable Optical Attenuator
Certification :	ROHS
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	1000pcs/day
Delivery Time :	3~5 business days

Add to Cart

♦ Low Insertion Loss

♦ Low Power Consumption

♦ Compact Size

♦ Fast Response Time

♦ High Stability and Reliability

♦ DWDM Channel Equalization

♦ EDFA Power Equalization

♦ Optical Receiver Protection

♦ Dynamic Power Regulation

Specification

Parameters		Units	Standard	Extended band
Wavelength range	c-band	nm	1530~1565	1520~1575
Minimum Insertion Loss	@ 0 VDC	dB	≤1.0	≤1.1
Return Loss		dB	≥45	≥45
Wavelength Dependent Loss	@ 5 dB Att	dB	≤0.6	≤0.6
	@ 10 dB Att	dB	≤0.8	≤1.3
	@ 20 dB Att	dB	≤1.0	≤1.5
Polarization Dependent Loss	@ 5 dB Att	dB	0.2	0.3
	@ 10 dB Att	dB	0.3	0.4
	@ 20 dB Att	dB	0.5	0.6
Temperature Dependent Loss	@ 5 dB Att	dB	1.2	1.5
	@ 10 dB Att	dB	1.8	2.0
Polarization Mode Dispersion	@ 0-20 dB Att	ps	0.05	-
Voltage vs Insertion Loss correlative stability	@ 0-15 dB Att	dB	+/-0.7	-
Voltage vs Insertion Loss EOL variation	@ 0-15 dB Att	dB	+/-0.7	-
Connector	Per customer’s choice
