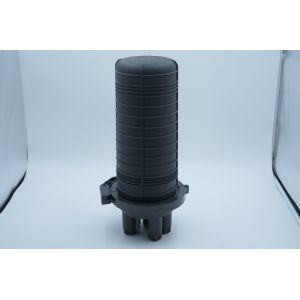

This IP68 96/144 core Dome Optical Fiber Splice Closure With 5 round cable holes Used for the straight-through and branching splice of the fiber cable, this product can be installed overhead, mounted on the wall/pole, or buried underground.

Feature:
1. All performance indicators meet the requirements of the national YD1-2013 closure standard;
2. The box shell adopts modified plastic MPP, with high mechanical strength, anti aging and corrosion resistance;
3. There are 5 round cable holes (4small & 1 large), the large port can be accessed by 2 cables;
4. Stacked splice trays and independent insulation grounding device make it flexible, convenient and safe;
5. The splice tray is provided with a dedicated slot for optical splitter;
6. With good sealing performance, the closure can be reopened and reused without changing the sealing material;
7. All metal parts are made of stainless steel.

Technical index:
Fiber radius of curvature: ≥40mm
Splice tray additional losses: ≤0.01dB
Working temperature: - 40℃ ～ + 65℃
Lateral pressure: ≥2000N / 10 cm
Shock resistance: ≥20N.m
Protection level: IP68

Unifiber, a Hi-Tech company specialized in developing and manufacturing optical fiber products. Based on strong hardware development, we are offering the most cost-effective cabling solutions on optical networking, data center, FTTx and OEM solution.

Our featured products includes FTTA Waterproof Connectors, indoor/outdoor armored cable assembly, Pre-terminated Multifiber Cables, FTTH flat drop patch cable, LC Uniboot, 6~12 fiber pigtails and MTP/MPO series. We can also provide adapter, attenuator, fused coupler, PLC Splitter, WDM and various of patch panel, terminal box, ODF and tool series products..

Providing the highest quality products and services is always the most important principle to Unifiber, All our products are subjected to strict test according to BELLCORE standard and fully RoHS compliant. Through the efforts of our team, Unifiber has obtained a widespread acknowledgement, Our products continue to enjoy growing acceptance both in China and abroad.
